Round Duct Flange Punching Machine

Round Duct Flange Punching Machine

I. Round Duct Flange Punching Machine's Features:

1.Full Automation & High Precision：As a fully automatic CNC device, it’s driven by a servo motor to achieve accurate auto-positioning for flanges (diameter range φ250～φ3600mm). Its indexing accuracy reaches ±0.1mm, ensuring precise hole processing for flanges.

2.User-Friendly Operation & Flexible Molds：It is equipped with a user-friendly TFT interface for easy operation. The H13K molds (hardness HRC60°) support quick replacement, reducing mold change time and improving production flexibility.

3.Stable Structure for Long-Term Reliability：Adopting a double-beam four-point support design, it maintains stable punching precision during long-term use, avoiding precision degradation caused by structural deformation.

4.Efficient Application & Material Saving：Widely used for hole processing of air duct round flanges, it not only boosts production efficiency but also reduces material waste, lowering overall processing costs.

5.Broad Specification Adaptability：With a power of 8000W, it can process sheets with a thickness of 0-4mm. The equipment dimensions are 3100×1500×1700mm and weight is 1700kg, fitting most workshop layouts and meeting diverse flange processing needs.

II. Technical Parameters

1.Machine name: Round Duct Flange Punching Machine

2.Thickness range: 0-4mm

3.Power: 8kw

4.Weight: 1700KGS

5.Dimension: 3100x1500x1700mm

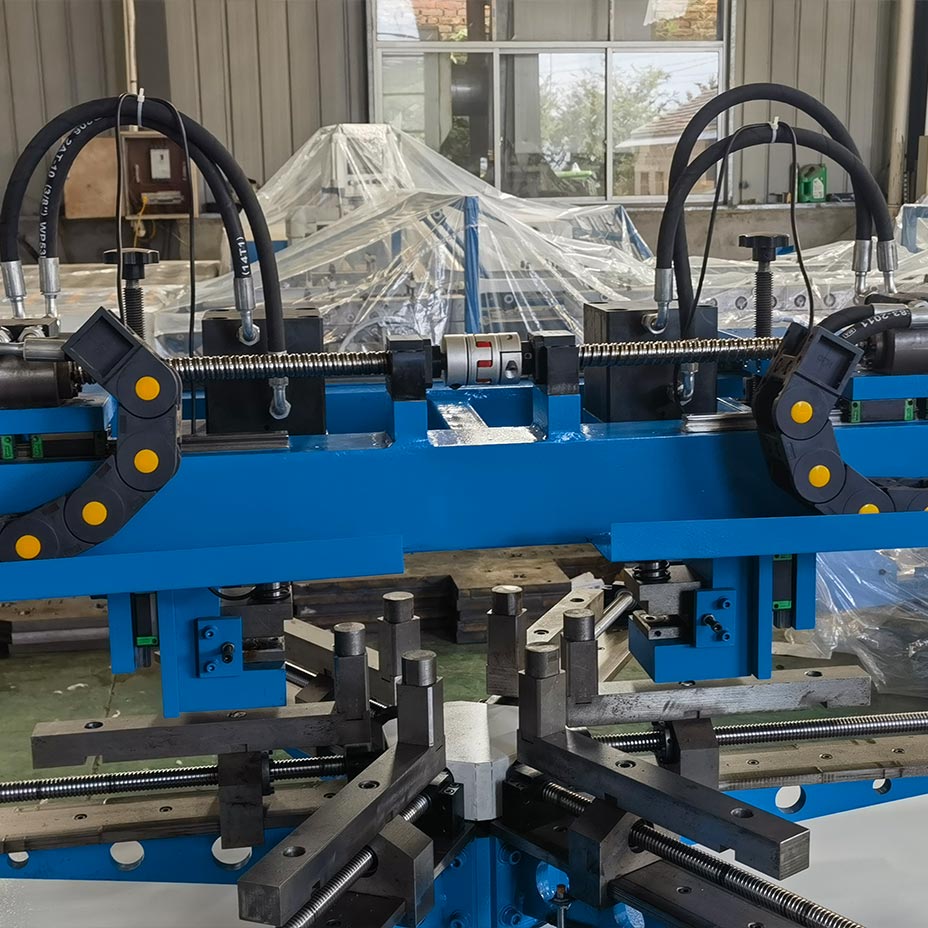

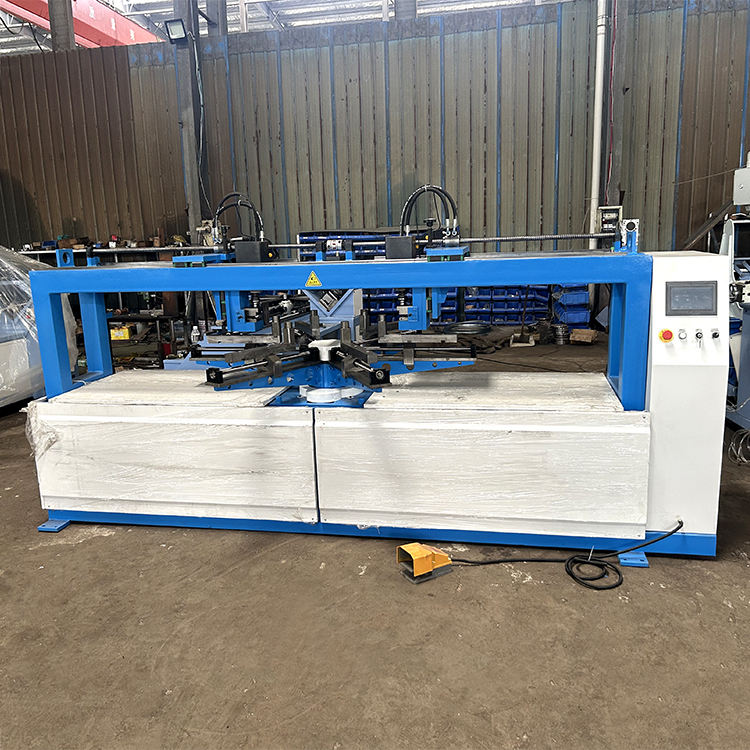

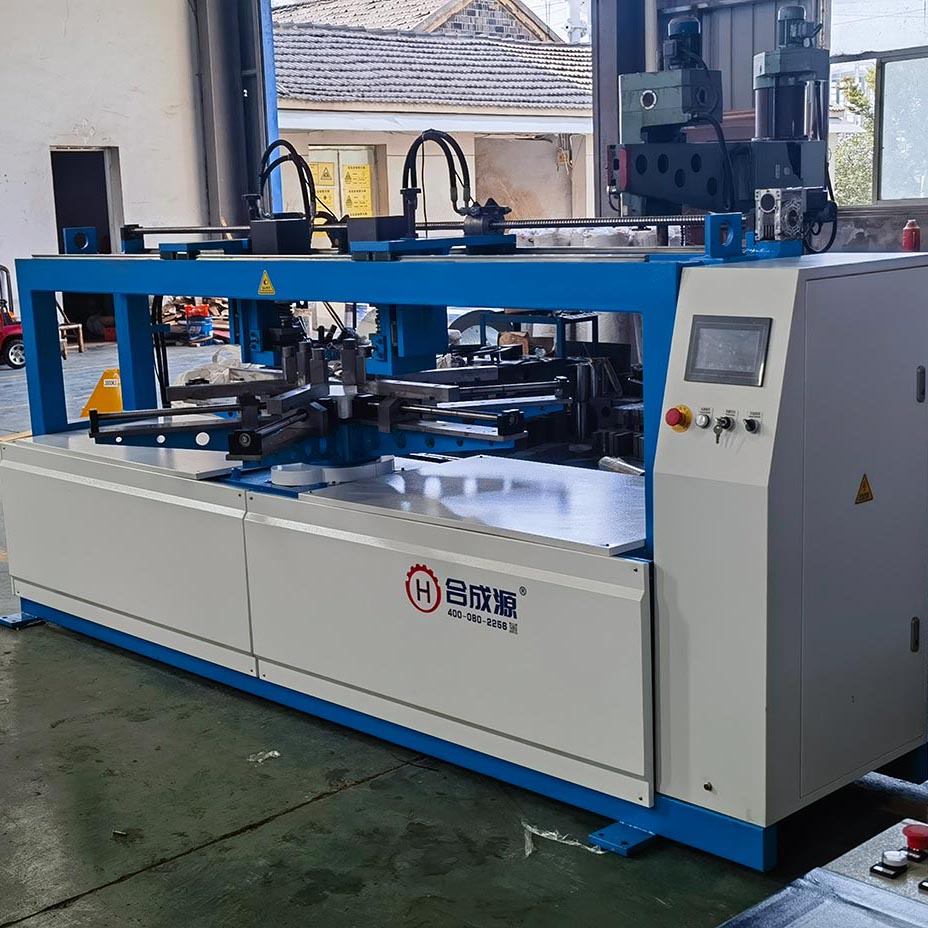

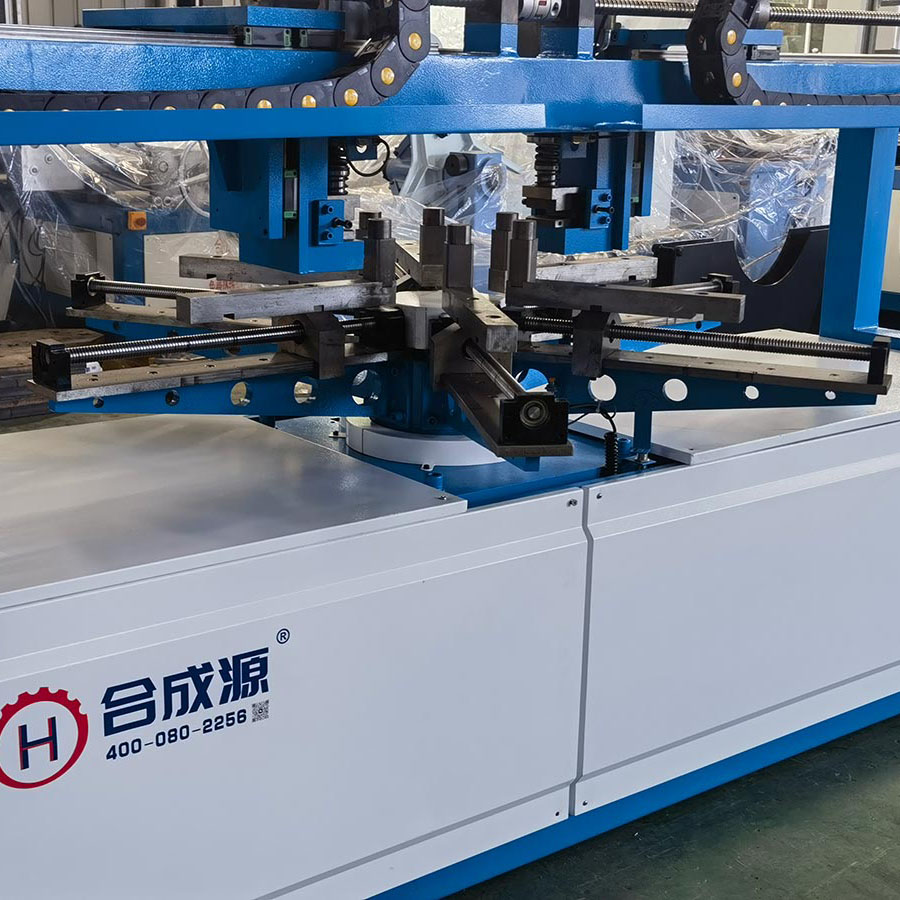

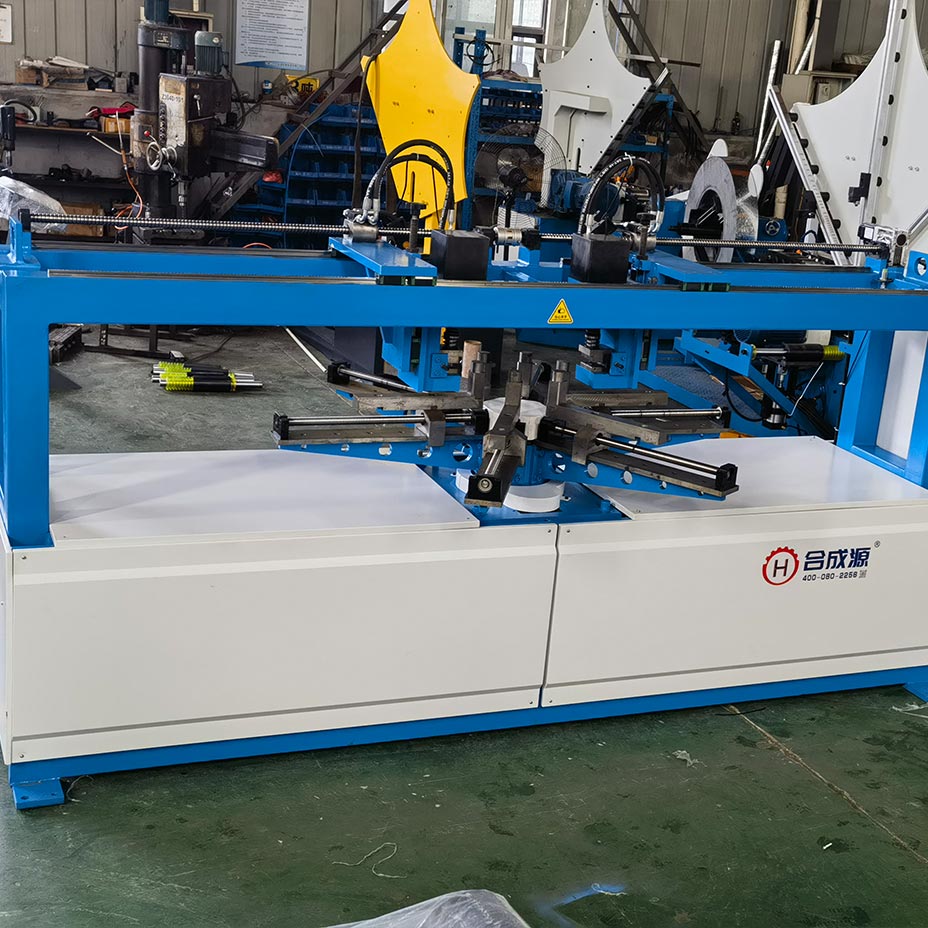

III. Real Photos:

IV. Quality Certifications:

V. FAQ:

Q: Factory or trading company?

A: Professional direct manufacturer.

Q: Not sure how to operate the machine?

A: Multiple support options:

Attached detailed operation manual.

Our engineers on-site, or your team trained at our factory.

24/7 Phone & Email support.

Q: What payment terms do you accept?

A: Support T/T, L/C, Western Union. Other methods negotiable by mutual agreement.

Q: Machine warranty period?

A: 1 year.

Main parts: high tool steel with special quenching (anti-corrosion, wear-resistant).

Free replacement for quality-related broken parts.

Q: Do you have stock?

A: Yes. Over 100 units in stock for quick delivery.

Q: How do you control quality?

A: Quality first. Strict control through the entire production process.

Q: Shipping cost from China to us?

A: Sea/air to your port/door. Provide your nearest port/address (with postcode) for quote. Reliable agents ensure safe, on-time delivery.
